Leadscrews are used in machines to convert rotary motion into linear motion. Here is the specification of top quality Leadscrews and Anti backlash nut available in India
Leadscrew with Anti backlash nut are commonly used in 3D printers, CNC machines, and other applications requiring high precision linear motion control.
A leadscrew, also known as a power screw or translation screw, is a mechanical component used in machines to convert rotary motion into linear motion. It plays a crucial role in various applications, including electric linear actuators, CNC machines, and 3D printers.
A leadscrew with a specialized anti-backlash nut eliminates unwanted slack, or backlash, in a linear screw drive system. Backlash occurs when the direction of movement is reversed and there’s a slight gap between the screw threads and the nut. The anti-backlash nut uses mechanisms like springs or split designs to take up this slack, ensuring precise positioning even during directional changes.
Package Content #
- Leadscrew x 1 Nos.
- Anti Backlash Nut x 1 Nos.
- Spring x 1 Nos.
Dimension #
| Leadscrew Dia (D) | M8 |
| Leadscrew Length (L) | 150 mm to 1000 mm |
| Leadscrew Pitch | 1.25 mm |
| Thread Standard | Metric |
| Anti Backlash Nut Dia | M8 |
| Anti Backlash Nut Height (H) | 27 mm |
| Anti Backlash Nut Flange Dia (DN) | 22 mm |
| Mounting Holes Dia (S) | 3.5 mm (Through Holes) |
| Mounting Holes Count | 4 |
| Material of Leatscrew | SS304 |
| Material of Anti Backlash Nut | Brass |
| Material of Spring | Spring Steel, Nickel or Zinc Plated |
| Spring Surface Finish | Nickel or Zinc Plated |
Features #
- Low cost, ready to use
- SS304 Leadscrew
- Brass Anti Backlash Nut
- Chamfered endings for smooth operation
- easy to assemble, simpler to maintain
- Easily Customizable
0 Metric Leadscrew

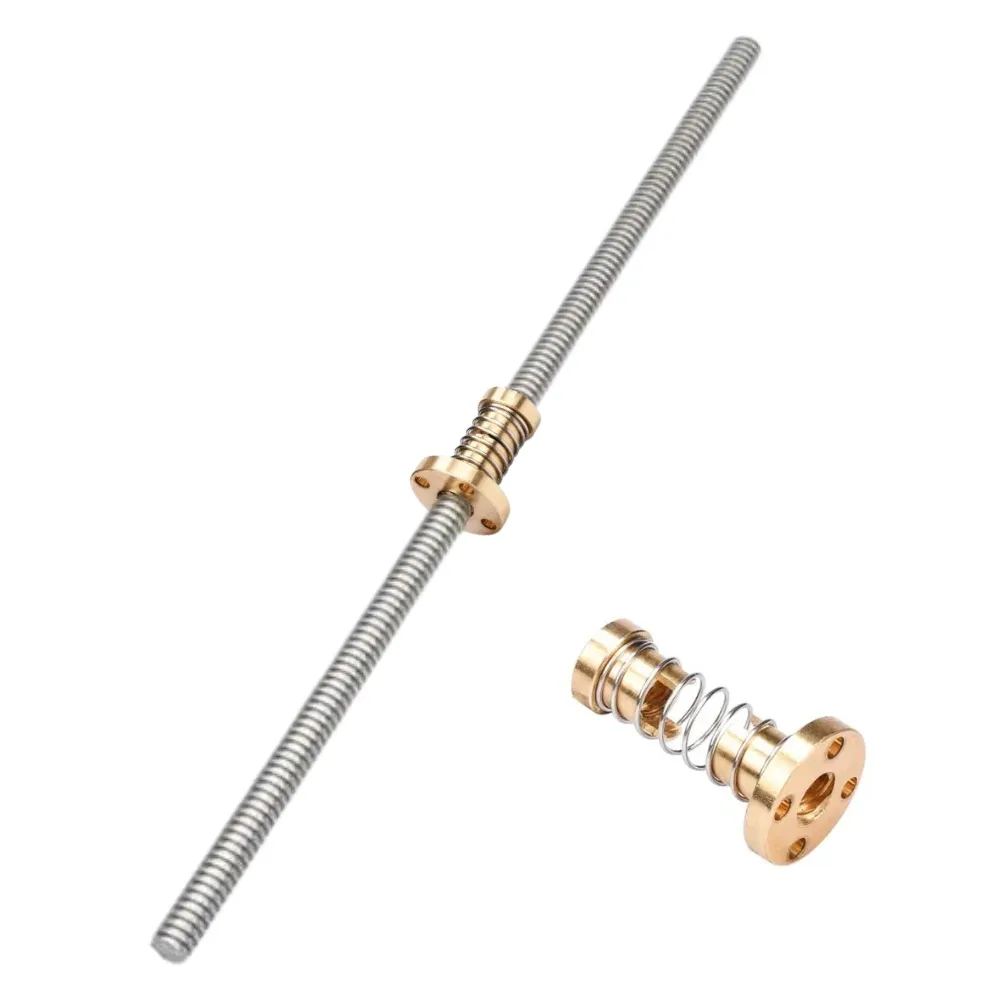

1 Leadscrew Antibacklash Nut
2 Antibacklash Nut Parts
3 Antibacklash Nut 2
4 Antibacklash Nut 1
5 Antibacklash Nut 3
Pros and Cons #
Pros of Leadscrew
- High precision and accuracy in positioning
- Reliable and cost-effective solution for many mechanical and engineering needs
- Compact
- Simplicity, easy to maintain and replace
- High load-carrying capacity, making them suitable for heavy-duty applications
However, leadscrews are not without their limitations.
- Lower particularly when compared to ball screws. Leadscrews tend to have higher friction due to the direct contact between the threads of the screw and the nut.
- Higher friction leads to increased wear and tear over time, necessitating regular maintenance and lubrication.
- Compared to Belt Pulley Mechanics, leadscrews are generally slower
