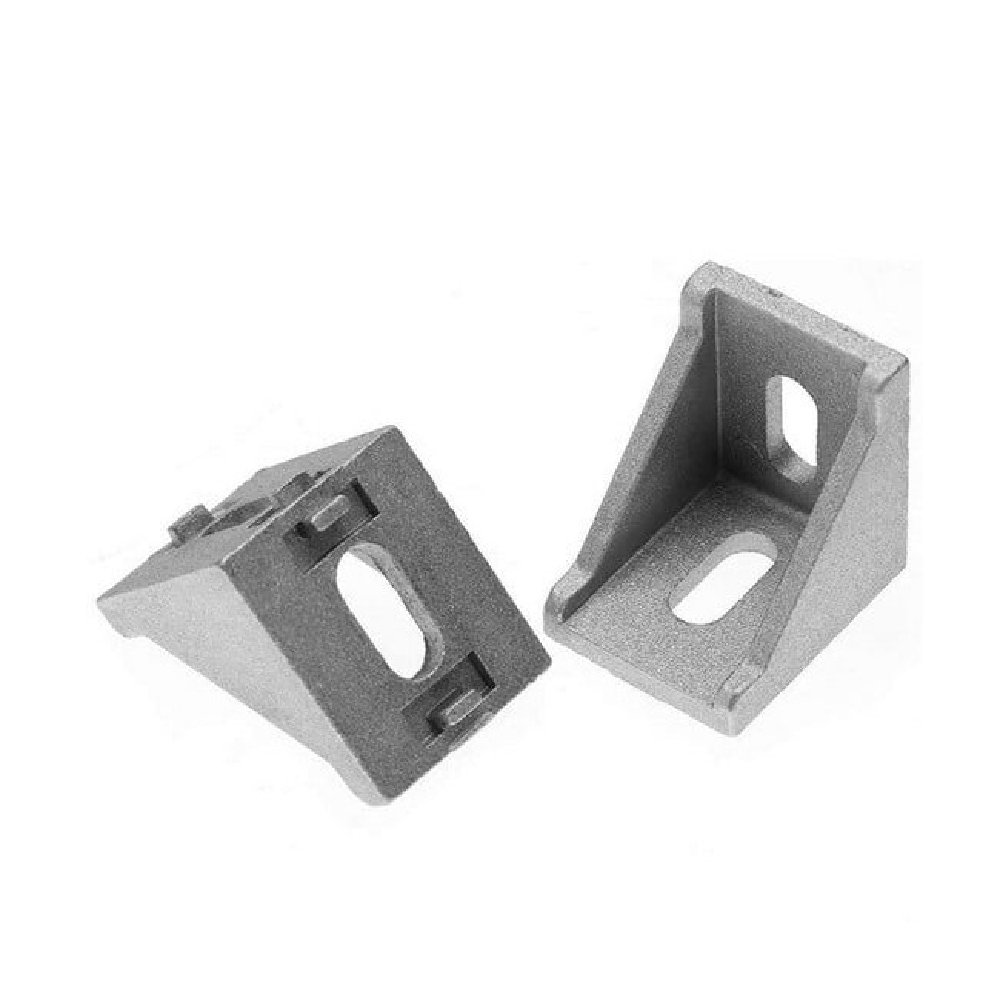

40mm L Corner Bracket for 4040 Tslot Extrusion Profile (Heavy)
₹36.00 (incl. GST)
₹30.51 (excl. GST)
| In Stock | |
| SKU | : ALEX-CONBRK-4040 |
| Brand | : Fastdep |
| Category | : Corner Bracket |
Highlights :
for 4040 V-Slot/T-Slot
Maintenance Notice: We are performing maintenance at the moment. You will not be able to place orders. You can always contact us
Why Fastdep.in
🚀
Fast
Dispatch
🎁
100% Fastdep
Fulfilled
♥️
Lowest
Price
🇬
GST
Invoice
⭐
100%
Premium
✔️
Quality
Guaranteed
🔒
Safe
Payments
₹
100+ Payment
Methods
🇮🇳
All India
Shipping
Product Details #
40mm L Corner Bracket for 4040 Tslot Extrusion Profile (Heavy) is available at Fastdep.in is of best quality. Please view our large selection of related products in Similar products section.
Corner brackets are L-shaped connectors used to join T-slot aluminum extrusions at a 90-degree angle. They are vital for building frames, enclosures, and various structures with these profiles. Made from aluminum alloy for strength and compatibility, they typically have holes on each flange for screwing into the T-slots of the extrusions.
There are different sizes to match the width of the T-slot aluminum extrusion profile, like the common 2020 mm (20 mm wide) and 3030 mm (30 mm wide) profiles and so on. These brackets come in various thicknesses for sturdiness depending on the application’s weight requirements.
The thickness of the bracket will determine its strength and weight capacity. Based on thickness the brackets are classified as Light, Medium and Heavy.
Heavy Corner Bracket for Aluminium Profile aka 90 Degree Angle Corner Connectors are of casted aluminum alloy, so they are stronger than extruded corner supports. This Corner Connector / Bracket is suitable for T Slot / V Slot Aluminium Extrusion Profile. Two holes, one in each corner allow you to easily connect two pieces at a 90 degree angle.
Dimension #
General Specification
| Angle | 90 degree |
| Material | Aluminium Alloy or Steel Alloy |
Important Note: The measurements provided are the maximum values for reference only; actual values may vary. Please contact us to get the dimensions of the current stock
| Bracket Size | Profile | Width (H) | Length (L) | Height (H) | Diameter (D) |
|---|---|---|---|---|---|
| 20mm | 2020 | 18 mm | 18 mm | 18 mm | 4.5 mm |
| 30mm | 3030 | 28 mm | 27 mm | 27 mm | 6.15 mm |
| 40mm | 4040 | 38 mm | 36 mm | 36 mm | 8.8 mm |
| 45mm | 4545 | 38 mm | 36 mm | 36 mm | 8.8 mm |
| 60mm | 6060 | 60 mm | 58 mm | 58 mm | 8 mm |
| 80mm | 8080 | 80 mm | 85 mm | 85 mm | 8 mm |
| 90mm | 9090 | 90 mm | 98 mm | 98 mm | 8 mm |
| 3060 Inside Corner Bracket | 3030, 6060 | 30 mm | 55 mm | 55 mm | 8 mm |
| 4080 Inside Corner Bracket | 4040, 8080 | 40 mm | 80 mm | 80 mm | 8 mm |
| 4590 Inside Corner Bracket | 4545, 9090 | 45 mm | 80 mm | 80 mm | 8 mm |
In essence, heavy corner brackets are the go-to choice for robust and reliable connections in your T-slot aluminum projects when dealing with significant weight or demanding applications.
