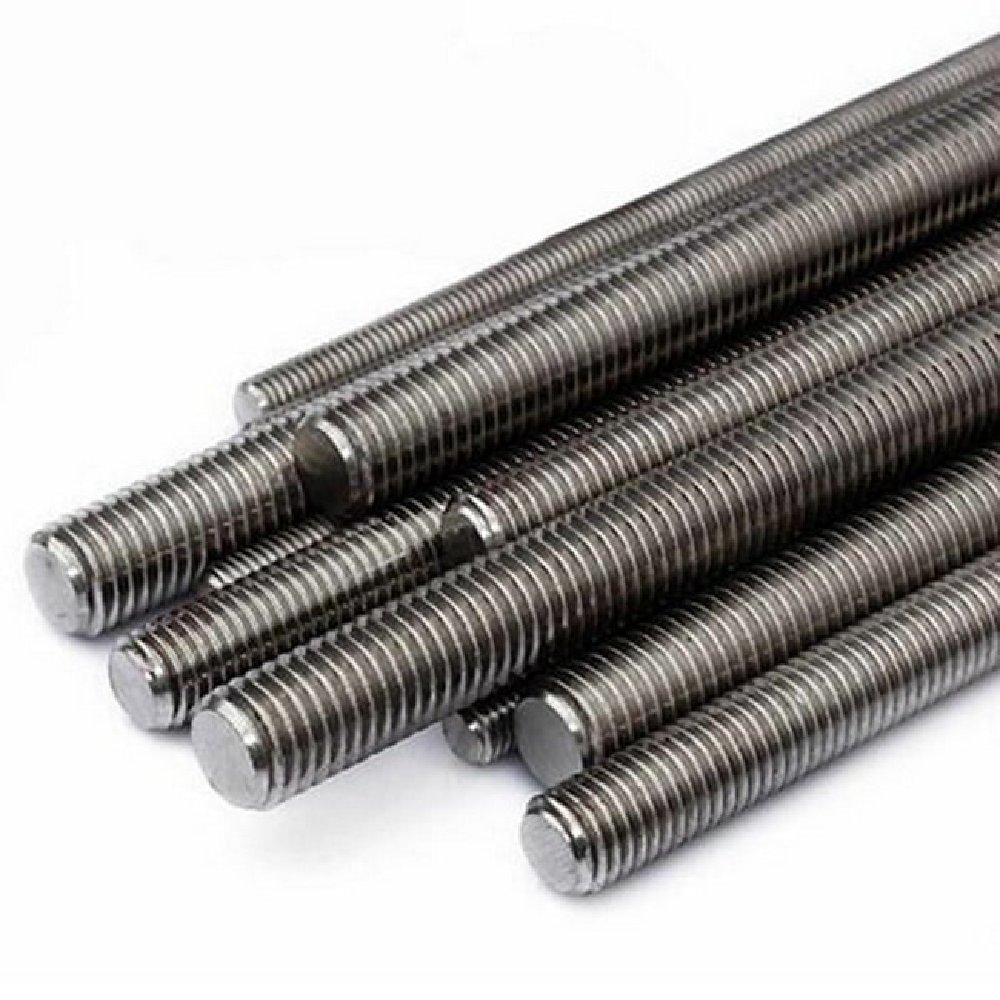

M6 MS Threaded Rod - 1000mm (2 Pcs)
₹228.00 (incl. GST)
₹193.22 (excl. GST)
| Sold Out | |
| SKU | : AUTO-TROD-M6X1000 |
| Brand | : Fastdep |
| Category | : Threaded Rod |
Why Fastdep.in
🚀
Fast
Dispatch
🎁
100% Fastdep
Fulfilled
♥️
Lowest
Price
🇬
GST
Invoice
⭐
100%
Premium
✔️
Quality
Guaranteed
🔒
Safe
Payments
₹
100+ Payment
Methods
🇮🇳
All India
Shipping
Product Details #
M6 MS Threaded Rod - 1000mm (2 Pcs) is available at Fastdep.in is of best quality. Please view our large selection of related products in Similar products section.
Specification & Dimension #
A threaded rod, also known as a stud or all-thread rod, is a long, slender fastener with threads along its entire length or on both ends. It is typically made from steel, stainless steel, or nylon, and is available in a variety of diameters and thread pitches. Threaded rods are used in a wide variety of applications. Learn more about the specifications of threaded rod.
Specification #
| Standard | DIN 976-1 |
| Name | Threaded rod |
| Material | Alloy Steel / High Tensile |
| Thread | Metric thread |
| Surface Finish | Zinc plated |
| Color | slightly blue-ish or yellow |
| Measurement System | Metric |
| Length Tolerance | +/- 10 mm |
Dimension #
| Size | Dia | Thread dia (mm) | Length (mm) | Pitch (mm) | Weight (kg) | Material |
|---|---|---|---|---|---|---|
| M5 | 5mm | 4.976-4.826 | 500 mm | 0.8 | 0.12 | SS304 |
| M6 | 6mm | 5.974-5.794 | 1000 mm | 1 | 0.16 | MS |
| M8 | 8mm | 7.976-7.826 | 1000 mm | 1.25 | 0.29 | MS |
| M10 | 10mm | 9.968-9.732 | 1000 mm | 1.5 | 0.46 | MS |
| M12 | 10mm | 11.966-11.701 | 1000 mm | 1.75 | 0.7 | MS |
Note: The values provided are based on standard specification, the details are for information purpose only. To verify the dimension accuracy customers are requested to buy sample and verify before making bulk purchases. Always feel free to reach us for any help.
