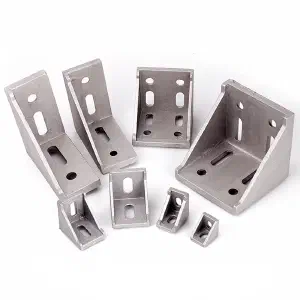

L Corner Bracket

External L-shaped connectors that join two T-slot aluminium extrusion profiles at 90 degrees, bolted to profile faces with T-nuts. Available in aluminium alloy (6063-T5, 6005A-T61) or zinc-plated steel for rigid structural corner joints.

Specification #


Material	Aluminium alloy (6063-T5 or 6005A-T61) or steel alloy
Angle	90 degrees
Surface Finish	Anodised (aluminium) or zinc-plated (steel)
Number of Fixing Points	2-hole or 4-hole per arm
Fastener Thread	M5, M6, or M8 depending on profile series
Connection Type	External, bolted with T-nuts

Dimension #

Dimension of L Corner Bracket for Tslot Aluminium Extrusion

Bracket Size	Profile	Width (mm)	Length (mm)	Height (mm)	Hole Diameter (mm)
20 mm	2020	18	18	18	4.5
30 mm	3030	28	27	27	6.15
40 mm	4040	38	36	36	8.8
45 mm	4545	38	36	36	8.8
60 mm	6060	60	58	58	8
80 mm	8080	80	85	85	8
90 mm	9090	90	98	98	8

Dimensions vary by profile series. Representative sizes below.

Benefits #

Applications of L Corner Bracket for Tslot Aluminium Extrusion

L corner brackets address the need for strong, rigid 90-degree connections in aluminium extrusion frames where joint strength is critical. By bolting to the external faces of two perpendicular profiles through T-nuts, the bracket distributes load across both sides of the corner, resisting racking and twisting forces that would otherwise loosen or deform the joint. Cast aluminium variants offer higher stiffness than flat extruded L-plates. The 4-hole configuration spreads clamping force over a larger area, reducing stress concentration on individual T-slot edges. No machining or drilling of profiles is required, and brackets can be repositioned along the slot as needed. For CNC machine frames, industrial workstations, and automation equipment, external L brackets deliver the structural rigidity that internal connectors cannot achieve, particularly when used in pairs on opposing faces.
