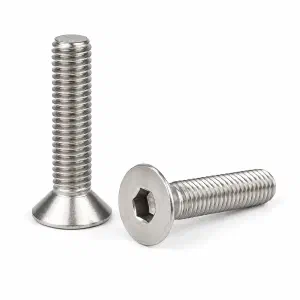

M12 SS Allen Countersunk Socket Screws
M12 stainless steel countersunk socket screws per DIN 7991 / ISO 10642 in A2-70 grade. 90° flat head seats flush in countersunk holes for smooth, corrosion-resistant surfaces at 12mm diameter.
Specification
#
Standard
DIN 7991 (superseded by ISO 10642)
Thread
Coarse (standard)
Material
Stainless Steel 304 (A2)
Grade
A2-70
Stock
In stock (304). Grade 316 available against bulk order
Dimension
#
Size (d mm)
Thread Dia (min-max mm)
Pitch
Length (mm)
Thread Length (mm)
M3
2.98-3.00
0.5
6-30
Full thread
M6
5.97-6.00
1.0
10-60
Full thread
M8
7.96-8.00
1.25
12-80
Full thread
M10
9.96-10.00
1.5
16-100
Full thread
M12
11.95-12.00
1.75
20-120
Full thread
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits
#
Stainless steel countersunk socket screws at 12mm provide flush fastening in environments where corrosion resistance is required. The 90° conical head seats fully within a prepared countersink, creating a continuous flat surface. A2 (304) stainless steel eliminates coating degradation issues that affect plated carbon steel fasteners in humid or corrosive environments. The conical head self-centres in the countersunk hole, improving positional accuracy. Internal hex drive allows single-side installation in confined assemblies.
Common Applications
#
Common applications for M12 stainless steel countersunk socket screws include:
- Precision instrument mounting surfaces
- Small enclosure flush panels
- Medical equipment housings
- Laboratory equipment surfaces
- Food processing small equipment
Read Me
| Standard | DIN 7991 (superseded by ISO 10642) |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.98-3.00 | 0.5 | 6-30 | Full thread |
| M6 | 5.97-6.00 | 1.0 | 10-60 | Full thread |
| M8 | 7.96-8.00 | 1.25 | 12-80 | Full thread |
| M10 | 9.96-10.00 | 1.5 | 16-100 | Full thread |
| M12 | 11.95-12.00 | 1.75 | 20-120 | Full thread |
