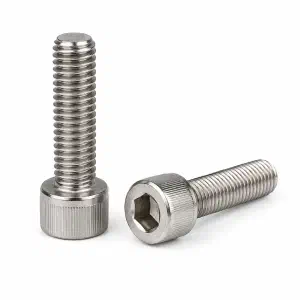

M14 SS Allen Socket Head Screw
M14 stainless steel socket head cap screws per DIN 912 / ISO 4762 in A2-70 grade. Full-strength cylindrical head with internal hex drive for corrosion-resistant high-load fastening at 14mm diameter.
Specification
#
Standard
DIN 912 / ISO 4762 (DIN EN ISO 4762)
Thread
Coarse (standard)
Material
Stainless Steel 304 (A2)
Grade
A2-70
Stock
In stock (304). Grade 316 available against bulk order
Dimension
#
Size (d mm)
Thread Dia (min-max mm)
Pitch
Length (mm)
Thread Length (mm)
M3
2.98-3.00
0.5
6-40
Full thread
M6
5.97-6.00
1.0
10-80
24
M8
7.96-8.00
1.25
12-100
28
M10
9.96-10.00
1.5
16-120
32
M16
15.95-16.00
2.0
25-150
44
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits
#
Stainless steel socket head cap screws at 14mm provide full-strength fastening in environments where carbon steel would corrode. The cylindrical head maintains full shank tensile strength without geometric derating. A2 (304) stainless steel eliminates protective coating requirements while providing reliable atmospheric corrosion resistance. Internal hex drive allows high-torque installation from one side using standard Allen keys. This diameter serves precision mechanical assemblies exposed to moisture, condensation, or chemical environments.
Common Applications
#
Common applications for M14 stainless steel socket head cap screws include:
- Precision instrumentation and optical equipment
- Medical device assembly
- Small mechanism and linkage construction
- Electronic enclosure mounting
- Laboratory equipment frames
Read Me
| Standard | DIN 912 / ISO 4762 (DIN EN ISO 4762) |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.98-3.00 | 0.5 | 6-40 | Full thread |
| M6 | 5.97-6.00 | 1.0 | 10-80 | 24 |
| M8 | 7.96-8.00 | 1.25 | 12-100 | 28 |
| M10 | 9.96-10.00 | 1.5 | 16-120 | 32 |
| M16 | 15.95-16.00 | 2.0 | 25-150 | 44 |
