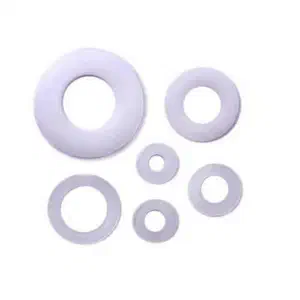

Nylon Washer
Nylon washers are non-metallic flat washers made from PA 6 or PA 6/6 polymer, providing electrical insulation, galvanic isolation, and vibration dampening in bolted assemblies. Dimensionally similar to DIN 125.
Specification
#
Standard
Similar to DIN 125 dimensions (not in absolute accordance per DIN 125 due to manufacturing limitations of nylon)
Material
Nylon 6, Nylon 6/6 (PA 6/6), Nylon MDS, Nylatron
Operating Temperature
Up to approximately 200°C (392°F) continuous; up to 400°F (204°C) for heat-resistant grades
Surface Finish
Natural, Black, White, or custom colors
System of Measurement
Metric and Imperial
Electrical Property
Non-conductive (excellent insulator)
Thread
Coarse (standard)
Coating
Plain
Stock
In stock
Dimension
#
Size
ID (mm)
OD (mm)
Thickness (mm)
M4
4.3
9
0.8
M6
6.4
12
1.6
M8
8.4
16
1.6
M10
10.5
20
2.0
M12
13
24
2.5
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits
#
Nylon washers solve multiple engineering challenges that metal washers cannot address. They provide complete electrical isolation between conductive metal components, preventing short circuits and stray current paths in electrical assemblies. When dissimilar metals are joined, nylon washers break the galvanic cell, eliminating corrosion caused by electrochemical potential differences. Their inherent damping properties absorb vibration and reduce noise transmission through bolted joints. Nylon is resistant to oils, fuels, and many chemicals, making it suitable for automotive and industrial environments. The lightweight construction reduces assembly weight, and the non-magnetic property is critical in sensitive instrumentation. FDA-compliant grades are available for food contact applications where metal contamination must be avoided.
Common Applications
#
Nylon washers are used in assemblies requiring electrical isolation, corrosion prevention between dissimilar metals, or non-metallic contact surfaces.
- Electrical panel and control panel assemblies
- Electronic equipment and PCB mounting
- Automotive electrical systems and interior trim
- Battery system isolation
- Food processing equipment
- Plumbing fixtures and fittings
- Medical instruments and devices
- HVAC duct and equipment mounting
- Telecommunications equipment
Read Me
| Standard | Similar to DIN 125 dimensions (not in absolute accordance per DIN 125 due to manufacturing limitations of nylon) |
| Material | Nylon 6, Nylon 6/6 (PA 6/6), Nylon MDS, Nylatron |
| Operating Temperature | Up to approximately 200°C (392°F) continuous; up to 400°F (204°C) for heat-resistant grades |
| Surface Finish | Natural, Black, White, or custom colors |
| System of Measurement | Metric and Imperial |
| Electrical Property | Non-conductive (excellent insulator) |
| Thread | Coarse (standard) |
| Coating | Plain |
| Stock | In stock |
| Size | ID (mm) | OD (mm) | Thickness (mm) |
|---|---|---|---|
| M4 | 4.3 | 9 | 0.8 |
| M6 | 6.4 | 12 | 1.6 |
| M8 | 8.4 | 16 | 1.6 |
| M10 | 10.5 | 20 | 2.0 |
| M12 | 13 | 24 | 2.5 |
