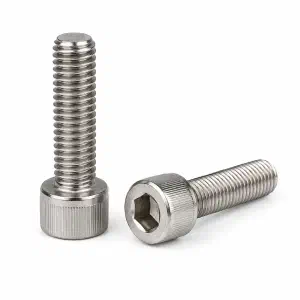

M16 SS Allen Socket Head Screw
DIN 912 M16 stainless steel hexagon socket head cap screws in A2 (304) grade. Cylindrical head provides full loadability with hex drive for confined-space installation at 16mm diameter.
Specification
#
Standard
DIN 912 / ISO 4762 (DIN EN ISO 4762)
Thread
Coarse (standard)
Material
Stainless Steel 304 (A2)
Grade
A2-70
Stock
In stock (304). Grade 316 available against bulk order
Dimension
#
Size (d mm)
Thread Dia (min-max mm)
Pitch
Length (mm)
Thread Length (mm)
M3
2.98-3.00
0.5
6-40
Full thread
M6
5.97-6.00
1.0
10-80
24
M8
7.96-8.00
1.25
12-100
28
M10
9.96-10.00
1.5
16-120
32
M16
15.95-16.00
2.0
25-150
44
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits
#
The 16mm stainless steel socket head cap screw addresses high-load fastening in corrosive environments. Unlike button or countersunk variants, the cylindrical head provides full loadability per ISO 3506-1. A2-70 grade delivers 700 MPa tensile strength with inherent corrosion protection. Deep hex socket engagement allows high installation torque without cam-out, even after repeated disassembly cycles. The smooth cylindrical head can serve as a locating surface in precision fixtures.
Common Applications
#
M16 SS socket head cap screws are specified for high-load corrosion-resistant fastening:
- Machine tool construction
- Food processing machinery
- Automotive engine components (corrosion zones)
- Mold and die construction
- Hydraulic cylinder mounting
Read Me
| Standard | DIN 912 / ISO 4762 (DIN EN ISO 4762) |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.98-3.00 | 0.5 | 6-40 | Full thread |
| M6 | 5.97-6.00 | 1.0 | 10-80 | 24 |
| M8 | 7.96-8.00 | 1.25 | 12-100 | 28 |
| M10 | 9.96-10.00 | 1.5 | 16-120 | 32 |
| M16 | 15.95-16.00 | 2.0 | 25-150 | 44 |
