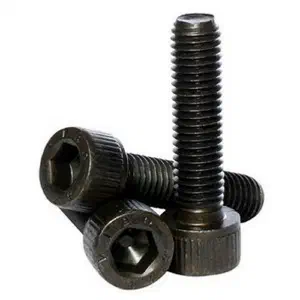

M2.5 Allen Socket Head Screw
DIN 912 M2.5 hexagon socket head cap screws in alloy steel grade 12.9 with black oxide finish. Full-strength cylindrical head for precision mechanical assemblies at 2.5mm thread size.
Specification
#
Standard
DIN 912 / ISO 4762 (EN ISO 4762)
Material
Alloy Steel
Thread
Coarse (standard)
Grade
12.9
Coating
Black oxide
Head Type
Cylindrical with hexagon socket
Drive Type
Hexagon socket (Allen key/hex wrench)
Stock
In stock
Dimension
#
Size (d mm)
Thread Dia (min-max mm)
Pitch
Length (mm)
Thread Length (mm)
M3
2.87-3.00
0.5
8-40
18
M6
5.85-6.00
1.0
10-100
24
M8
7.83-8.00
1.25
12-120
28
M10
9.82-10.00
1.5
16-150
32
M12
11.79-12.00
1.75
20-200
36
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits
#
The 2.5mm socket head cap screw addresses fastening requirements where high clamp load and confined-space installation are simultaneous requirements. Unlike hex bolts, the internal hex socket eliminates the need for external wrench clearance on both sides of the joint. The cylindrical head provides full loadability, enabling designers to utilise the complete load capacity of property class 12.9 alloy steel. Deep socket engagement allows high installation torque without cam-out. This diameter serves precision machinery, instrumentation, and small mechanism assemblies.
Common Applications
#
M2.5 socket head cap screws are specified for high-load confined-space fastening:
- Machine tool construction and CNC equipment
- Automotive engine and transmission assemblies
- Mold and die construction
- Hydraulic and pneumatic cylinder mounting
- Industrial gearbox assembly
Read Me
| Standard | DIN 912 / ISO 4762 (EN ISO 4762) |
| Material | Alloy Steel |
| Thread | Coarse (standard) |
| Grade | 12.9 |
| Coating | Black oxide |
| Head Type | Cylindrical with hexagon socket |
| Drive Type | Hexagon socket (Allen key/hex wrench) |
| Stock | In stock |
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.87-3.00 | 0.5 | 8-40 | 18 |
| M6 | 5.85-6.00 | 1.0 | 10-100 | 24 |
| M8 | 7.83-8.00 | 1.25 | 12-120 | 28 |
| M10 | 9.82-10.00 | 1.5 | 16-150 | 32 |
| M12 | 11.79-12.00 | 1.75 | 20-200 | 36 |
