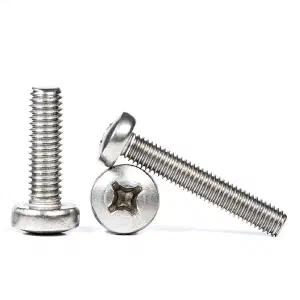

M4 SS Pan Head Machine Screw
M4 stainless steel pan head machine screws per ISO 7045 / DIN 7985 in A2-70 grade. Cylindrical head with Phillips or Pozi cross-recessed drive for metal-to-metal assembly at 4mm diameter.
Specification
#
Standard
ISO 7045 / DIN 7985
Thread
Coarse (standard)
Material
Stainless Steel 304 (A2)
Grade
A2-70
Stock
In stock (304). Grade 316 available against bulk order
Head Type
Pan head (raised cheese head)
Drive Type
Phillips (H) or Pozi (Z) cross-recessed
Thread Tolerance
6g per ISO metric standards
Finish
Plain/Passivated (stainless steel)
Dimension
#
Size (d mm)
Thread Dia (min-max mm)
Pitch
Length (mm)
Thread Length (mm)
M3
2.98-3.00
0.50
10
10
M4
3.98-4.00
0.70
12
12
M5
4.98-5.00
0.80
16
16
M6
5.97-6.00
1.00
20
20
M8
7.97-8.00
1.25
25
25
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits
#
Stainless steel pan head machine screws at 4mm provide corrosion-resistant metal-to-metal fastening with a wide bearing surface. The flat underside of the pan head distributes clamping force evenly, reducing localized stress on softer materials. A2 (304) stainless steel eliminates coating degradation in humid and atmospheric environments. Cross-recessed Phillips and Pozi drives reduce cam-out during powered installation. This diameter serves small electronics, instrument panels, and light machinery assembly.
Common Applications
#
Common applications for M4 stainless steel pan head machine screws include:
- Consumer electronics assembly
- Small instrument panel mounting
- Medical device housings
- Laboratory equipment frames
- Small electrical enclosure assembly
Read Me
| Standard | ISO 7045 / DIN 7985 |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Head Type | Pan head (raised cheese head) |
| Drive Type | Phillips (H) or Pozi (Z) cross-recessed |
| Thread Tolerance | 6g per ISO metric standards |
| Finish | Plain/Passivated (stainless steel) |
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.98-3.00 | 0.50 | 10 | 10 |
| M4 | 3.98-4.00 | 0.70 | 12 | 12 |
| M5 | 4.98-5.00 | 0.80 | 16 | 16 |
| M6 | 5.97-6.00 | 1.00 | 20 | 20 |
| M8 | 7.97-8.00 | 1.25 | 25 | 25 |
