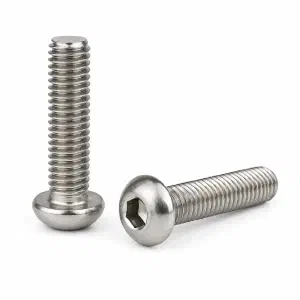

M6 SS Allen Button Head Socket Screws
M6 stainless steel button head socket screws per ISO 7380-1 in A2-70 grade with internal hex drive. Low-profile domed head with 80% head load rating for corrosion-resistant fastening at 6mm diameter.
Specification
#
Standard
ISO 7380-1 (plain button head) / ISO 7380-2 (button head with collar/flange)
Thread
Coarse (standard)
Material
Stainless Steel 304 (A2)
Grade
A2-70
Stock
In stock (304). Grade 316 available against bulk order
Dimension
#
Size (d mm)
Thread Dia (min-max mm)
Pitch
Length (mm)
Thread Length (mm)
M3
2.98-3.00
0.5
6-25
Full thread
M5
4.97-5.00
0.8
8-40
Full thread
M6
5.97-6.00
1.0
10-50
24
M8
7.96-8.00
1.25
12-60
28
M10
9.96-10.00
1.5
16-80
32
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits
#
Stainless steel button head screws at 6mm provide corrosion-resistant fastening with a low-profile domed head. The rounded profile sits closer to the workpiece than cylindrical socket head cap screws, reducing assembly height and eliminating snag points. A2 (304) stainless steel eliminates the need for protective coatings, providing reliable atmospheric corrosion resistance. Internal hex drive allows installation in confined spaces. The 80% head load rating per ISO 7380-1 must be accounted for in joint design calculations.
Common Applications
#
Common applications for M6 stainless steel button head screws include:
- Electrical enclosures and control panels
- Small instrument housings and covers
- Food processing equipment panels
- Medical device enclosures
- Laboratory equipment mounting
Read Me
| Standard | ISO 7380-1 (plain button head) / ISO 7380-2 (button head with collar/flange) |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.98-3.00 | 0.5 | 6-25 | Full thread |
| M5 | 4.97-5.00 | 0.8 | 8-40 | Full thread |
| M6 | 5.97-6.00 | 1.0 | 10-50 | 24 |
| M8 | 7.96-8.00 | 1.25 | 12-60 | 28 |
| M10 | 9.96-10.00 | 1.5 | 16-80 | 32 |
