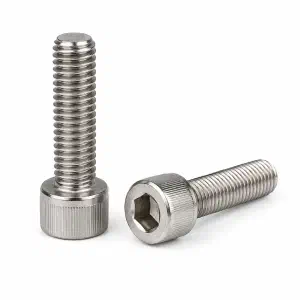

M12 SS Allen Socket Head Screw
M12 stainless steel cylindrical head socket screws to ISO 4762 with hex drive in A2-70 grade. Full shank tensile strength for structural and mechanical joints at 12mm diameter.
Specification
#
Standard
DIN 912 / ISO 4762 (DIN EN ISO 4762)
Thread
Coarse (standard)
Material
Stainless Steel 304 (A2)
Grade
A2-70
Stock
In stock (304). Grade 316 available against bulk order
Dimension
#
Size (d mm)
Thread Dia (min-max mm)
Pitch
Length (mm)
Thread Length (mm)
M3
2.98-3.00
0.5
6-40
Full thread
M6
5.97-6.00
1.0
10-80
24
M8
7.96-8.00
1.25
12-100
28
M10
9.96-10.00
1.5
16-120
32
M16
15.95-16.00
2.0
25-150
44
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits
#
At 12mm, stainless steel socket head cap screws are the standard choice for high-load mechanical joints in corrosive service. The cylindrical head diameter is approximately 1.5 times the thread diameter, keeping the footprint compact while maintaining full head strength. Hex socket drive enables controlled torque application in automated and manual assembly. A2 stainless steel is appropriate for general atmospheric exposure, food processing, and marine interior applications.
Common Applications
#
Typical applications for 12mm stainless steel socket head cap screws:
- Marine engine and deck hardware
- Aerospace structural assemblies
- Chemical processing equipment
- Robotics and automation frames
- Steel structures in corrosive environments
Read Me
| Standard | DIN 912 / ISO 4762 (DIN EN ISO 4762) |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.98-3.00 | 0.5 | 6-40 | Full thread |
| M6 | 5.97-6.00 | 1.0 | 10-80 | 24 |
| M8 | 7.96-8.00 | 1.25 | 12-100 | 28 |
| M10 | 9.96-10.00 | 1.5 | 16-120 | 32 |
| M16 | 15.95-16.00 | 2.0 | 25-150 | 44 |
