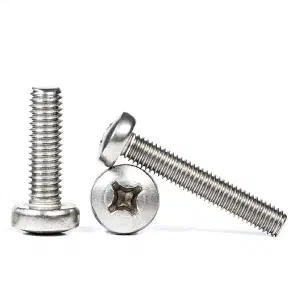

M3 SS Pan Head Machine Screw
M3 stainless steel cylindrical head machine screws to DIN 7985 / ISO 7045 with Phillips/Pozi drive in A2-70 grade. Reliable metal-to-metal fastening at 3mm diameter.
Specification
#
Standard
ISO 7045 / DIN 7985
Thread
Coarse (standard)
Material
Stainless Steel 304 (A2)
Grade
A2-70
Stock
In stock (304). Grade 316 available against bulk order
Head Type
Pan head (raised cheese head)
Drive Type
Phillips (H) or Pozi (Z) cross-recessed
Thread Tolerance
6g per ISO metric standards
Finish
Plain/Passivated (stainless steel)
Dimension
#
Size (d mm)
Thread Dia (min-max mm)
Pitch
Length (mm)
Thread Length (mm)
M3
2.98-3.00
0.50
10
10
M4
3.98-4.00
0.70
12
12
M5
4.98-5.00
0.80
16
16
M6
5.97-6.00
1.00
20
20
M8
7.97-8.00
1.25
25
25
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits
#
At 3mm, stainless steel pan head machine screws provide reliable threaded connections in corrosive environments. The cylindrical head profile allows installation where countersinking is impractical. A2 stainless steel construction is appropriate for food processing, medical equipment, and marine interior applications. Phillips and Pozi drive compatibility ensures installation flexibility.
Common Applications
#
Typical applications for 3mm stainless steel pan head machine screws:
- Industrial machinery manufacturing
- Marine equipment mounting
- Heavy equipment panel attachment
- Signage and display systems
- Large appliance assembly
Read Me
| Standard | ISO 7045 / DIN 7985 |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Head Type | Pan head (raised cheese head) |
| Drive Type | Phillips (H) or Pozi (Z) cross-recessed |
| Thread Tolerance | 6g per ISO metric standards |
| Finish | Plain/Passivated (stainless steel) |
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.98-3.00 | 0.50 | 10 | 10 |
| M4 | 3.98-4.00 | 0.70 | 12 | 12 |
| M5 | 4.98-5.00 | 0.80 | 16 | 16 |
| M6 | 5.97-6.00 | 1.00 | 20 | 20 |
| M8 | 7.97-8.00 | 1.25 | 25 | 25 |
