M2 SS Countersunk Machine Screw
M2 stainless steel countersunk machine screws per ISO 7046 / DIN 965 in A2-70 grade. 90° conical head with Phillips or Pozi cross-recessed drive for flush mounting at 2mm diameter.
Specification
#
Standard
ISO 7046 / DIN 965
Thread
Coarse (standard)
Material
Stainless Steel 304 (A2)
Grade
A2-70
Stock
In stock (304). Grade 316 available against bulk order

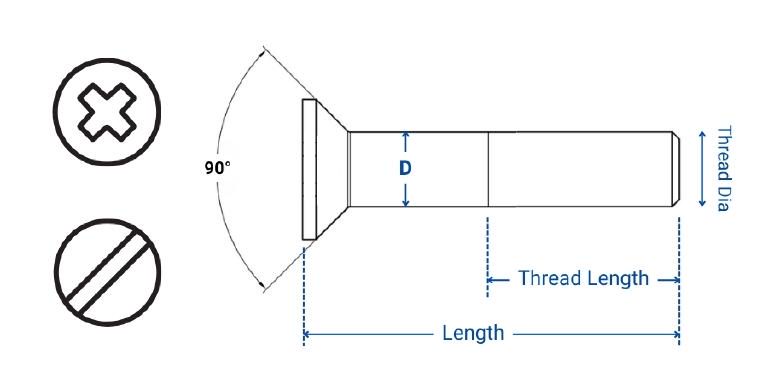

Dimension
#
Size (d mm)
Thread Dia (min-max mm)
Pitch
Length (mm)
Thread Length (mm)
M3
2.98-3.00
0.5
6-30
Full thread
M4
3.97-4.00
0.7
8-40
Full thread
M6
5.97-6.00
1.0
10-60
Full thread
M8
7.96-8.00
1.25
12-80
Full thread
M10
9.96-10.00
1.5
16-100
Full thread
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits
#
Stainless steel countersunk machine screws at 2mm provide flush fastening in environments requiring corrosion resistance. The 90° conical head seats into a machined recess, creating a smooth surface that prevents snagging. A2 (304) stainless steel eliminates coating degradation issues in humid and atmospheric environments. Cross-recessed Phillips and Pozi drives provide better torque transfer than slotted alternatives. This diameter serves small enclosures, instrument panels, and electronic equipment covers.
Common Applications
#
Common applications for M2 stainless steel countersunk machine screws include:
- Small electronic enclosure covers
- Instrument panel mounting
- Medical device housing assembly
- Laboratory equipment covers
- Small appliance housing fastening
Read Me
| Standard | ISO 7046 / DIN 965 |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.98-3.00 | 0.5 | 6-30 | Full thread |
| M4 | 3.97-4.00 | 0.7 | 8-40 | Full thread |
| M6 | 5.97-6.00 | 1.0 | 10-60 | Full thread |
| M8 | 7.96-8.00 | 1.25 | 12-80 | Full thread |
| M10 | 9.96-10.00 | 1.5 | 16-100 | Full thread |
