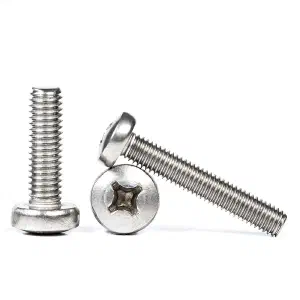

M5 SS Pan Head Machine Screw
ISO 7045 M5 stainless steel pan head screws in A2 (304) grade with cross-recessed drive. Flat bearing surface under head distributes clamp load at 5mm thread diameter.
Specification
#
Standard
ISO 7045 / DIN 7985
Thread
Coarse (standard)
Material
Stainless Steel 304 (A2)
Grade
A2-70
Stock
In stock (304). Grade 316 available against bulk order
Head Type
Pan head (raised cheese head)
Drive Type
Phillips (H) or Pozi (Z) cross-recessed
Thread Tolerance
6g per ISO metric standards
Finish
Plain/Passivated (stainless steel)
Dimension
#
Size (d mm)
Thread Dia (min-max mm)
Pitch
Length (mm)
Thread Length (mm)
M3
2.98-3.00
0.50
10
10
M4
3.98-4.00
0.70
12
12
M5
4.98-5.00
0.80
16
16
M6
5.97-6.00
1.00
20
20
M8
7.97-8.00
1.25
25
25
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits
#
The 5mm stainless steel pan head machine screw addresses fastening in assemblies where corrosion resistance and reliable clamp load distribution are needed. The pan head provides a wider bearing surface than countersunk or round head alternatives. A2-70 grade provides 700 MPa tensile strength with inherent corrosion protection. Cross-recessed drive allows controlled torque application in automated assembly. Austenitic structure provides essentially non-magnetic properties for electronics and medical applications.
Common Applications
#
M5 SS pan head machine screws are specified for corrosion-resistant metal-to-metal fastening:
- Electrical enclosures and control panels
- Automotive interior components
- HVAC system connections
- Food processing equipment assembly
- Telecommunications rack hardware
