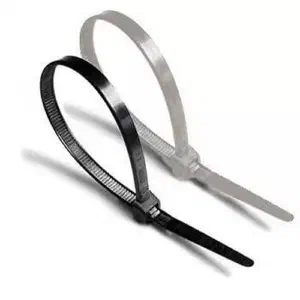

Cable Ties
Self-locking nylon 66 fastening devices with a one-way ratchet mechanism for bundling and securing cables, wires, and hoses. Rated to UL 62275 and IEC 62275, available in lengths from 100mm to 650mm with tensile strengths up to 80kg.
Specification
#
Standard
UL 62275 (Type 21S), IEC 62275
Material
Nylon
Flammability Rating
UL94 V-2
Operating Temperature
-40°C to +85°C (standard), up to +105°C (heat-stabilized)
Lock Mechanism
Self-locking ratchet (one-way)
Dimension
#
Length (mm)
Width (mm)
Tensile Strength (kg)
Max Bundle Diameter (mm)
100
2.5
8
22
150
2.5
8
35
200
3.6
18
50
250
4.8
22
65
300
4.8
22
82
370
4.8
22
102
400
7.6
54
114
500
7.6
54
150
650
9.0
80
200
- Dimensions and tensile strength are typical values. Actual specifications vary by manufacturer. Tensile strength is loop tensile strength (minimum breaking load).
Benefits
#
Cable ties solve the problem of unmanaged wiring that leads to tangled bundles, abrasion damage, and difficult fault tracing in electrical installations. Unsecured cables vibrate against sharp edges, degrade insulation over time, and create fire hazards in enclosed panels. The self-locking ratchet mechanism provides permanent retention without loosening under vibration, unlike adhesive clips or tape that fail with temperature cycling. Nylon 66 maintains flexibility across the -40°C to +85°C operating range, preventing brittle fracture in cold environments and softening in hot enclosures. The one-piece design requires no tools for installation, reducing labour time in high-volume wiring harness assembly and panel building.
Common Applications
#
Universal fastening solution for cable management and general-purpose bundling across industries.
- Electrical cable management and bundling
- Automotive wiring harness assembly
- HVAC ductwork and pipe securing
- Construction and industrial installations
- Telecommunications and networking
- Home and office organization
- Garden and outdoor applications
- Temporary securing and marking
- Aerospace wire management
Read Me
| Standard | UL 62275 (Type 21S), IEC 62275 |
| Material | Nylon |
| Flammability Rating | UL94 V-2 |
| Operating Temperature | -40°C to +85°C (standard), up to +105°C (heat-stabilized) |
| Lock Mechanism | Self-locking ratchet (one-way) |
| Length (mm) | Width (mm) | Tensile Strength (kg) | Max Bundle Diameter (mm) |
|---|---|---|---|
| 100 | 2.5 | 8 | 22 |
| 150 | 2.5 | 8 | 35 |
| 200 | 3.6 | 18 | 50 |
| 250 | 4.8 | 22 | 65 |
| 300 | 4.8 | 22 | 82 |
| 370 | 4.8 | 22 | 102 |
| 400 | 7.6 | 54 | 114 |
| 500 | 7.6 | 54 | 150 |
| 650 | 9.0 | 80 | 200 |
