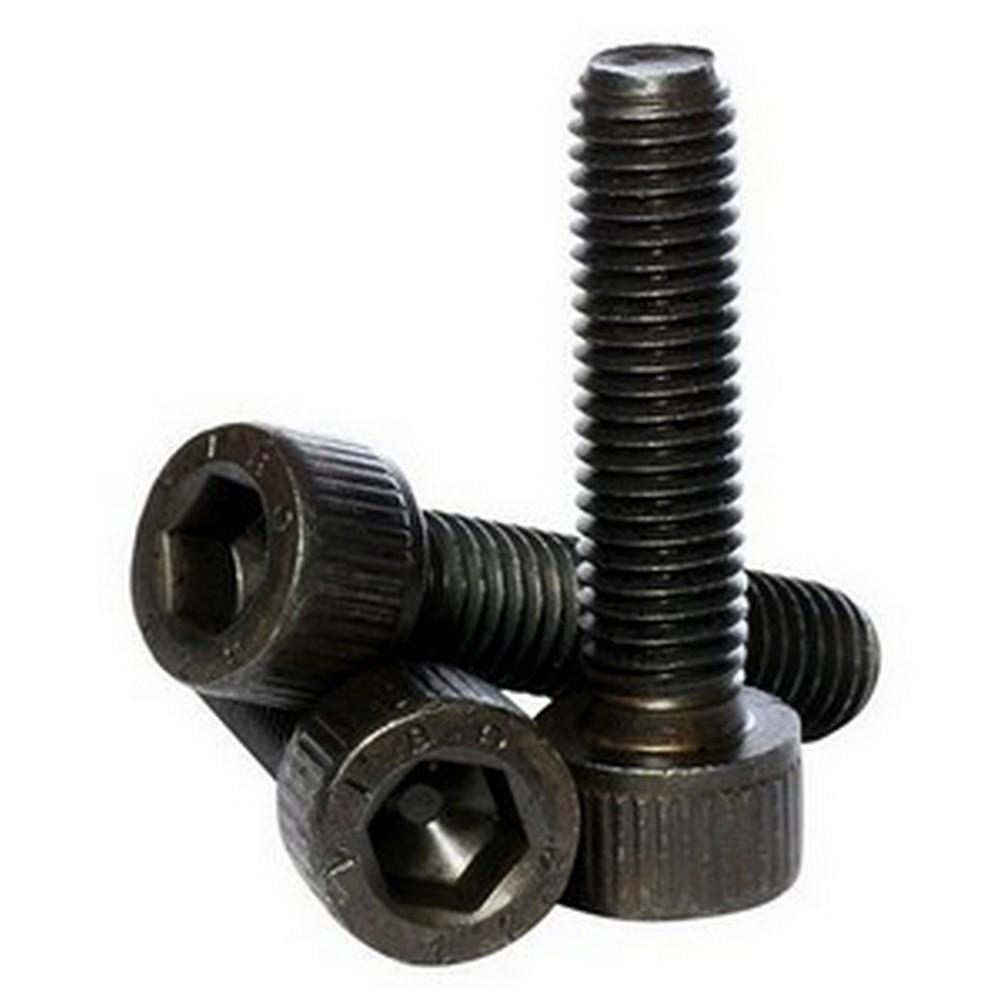

M5 x 35mm Allen Socket Head Screw (High Tensile) - 10 Nos
₹23.73 (excl. GST)
- SKU:
- FHT-SCREWSOC-ALNM5X35
- Brand:
- Fastdep
- Category:
- M5 Allen Socket Head Screw
- Qty / Pack:
- 10 per pack
- 🟢 In Stock:
- 99 Packs
Maintenance Notice: We are performing maintenance at the moment. You will not be able to place orders. You can always contact us
Order Today, Estimated delivery between:
Dispatch in 24–48 hrs
Shipping Options:
📦 India Post
🚚 Delhivery
📮 DTDC
More
Bulk Purchase (MOQ: 500+)
Contact us for price, lead time, stock confirmation.
Product Details #
DIN 912 M5 hexagon socket head cap screws in alloy steel grade 12.9 with black oxide finish. Full-strength cylindrical head for precision mechanical assemblies at 5mm thread size.
Specification #
| Standard | DIN 912 / ISO 4762 (EN ISO 4762) |
| Material | Alloy Steel |
| Thread | Coarse (standard) |
| Grade | 12.9 |
| Coating | Black oxide |
| Head Type | Cylindrical with hexagon socket |
| Drive Type | Hexagon socket (Allen key/hex wrench) |
| Stock | In stock |
Dimension #
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.87-3.00 | 0.5 | 8-40 | 18 |
| M6 | 5.85-6.00 | 1.0 | 10-100 | 24 |
| M8 | 7.83-8.00 | 1.25 | 12-120 | 28 |
| M10 | 9.82-10.00 | 1.5 | 16-150 | 32 |
| M12 | 11.79-12.00 | 1.75 | 20-200 | 36 |
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits #
The 5mm socket head cap screw addresses fastening requirements where high clamp load and confined-space installation are simultaneous requirements. Unlike hex bolts, the internal hex socket eliminates the need for external wrench clearance on both sides of the joint. The cylindrical head provides full loadability, enabling designers to utilise the complete load capacity of property class 12.9 alloy steel. Deep socket engagement allows high installation torque without cam-out. This diameter serves precision machinery, instrumentation, and small mechanism assemblies.
Common Applications #
M5 socket head cap screws are specified for high-load confined-space fastening:
- Machine tool construction and CNC equipment
- Automotive engine and transmission assemblies
- Mold and die construction
- Hydraulic and pneumatic cylinder mounting
- Industrial gearbox assembly
