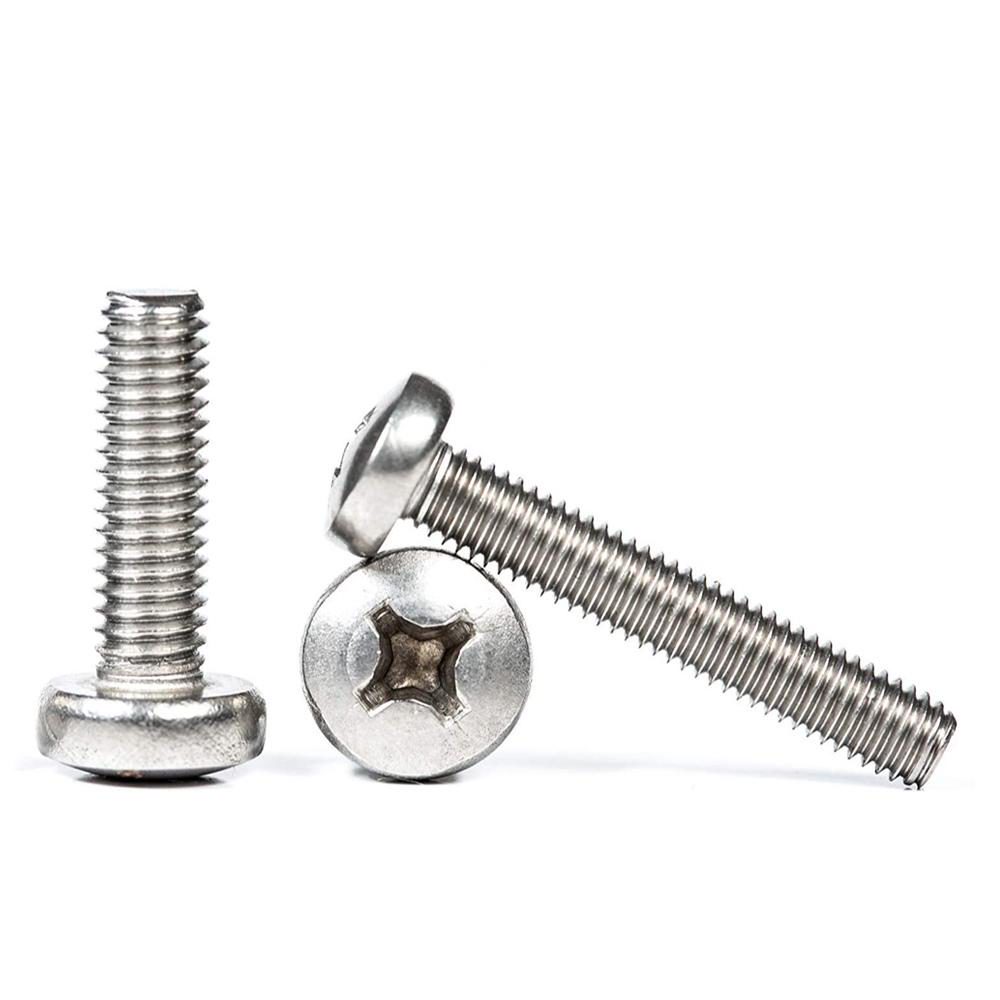

M4 x 40mm SS Pan Head Machine Screw
₹23.73 (excl. GST)
- SKU:
- FSS-MACSCREW-PAN-M4X40
- Brand:
- Fastdep
- Category:
- M4 SS Pan Head Machine Screw
- Qty / Pack:
- 1 per pack
Maintenance Notice: We are performing maintenance at the moment. You will not be able to place orders. You can always contact us
Bulk Purchase (MOQ: 500+)
Contact us for price, lead time, stock confirmation.
Product Details #
M4 stainless steel pan head machine screws per ISO 7045 / DIN 7985 in A2-70 grade. Cylindrical head with Phillips or Pozi cross-recessed drive for metal-to-metal assembly at 4mm diameter.
Specification #
| Standard | ISO 7045 / DIN 7985 |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Head Type | Pan head (raised cheese head) |
| Drive Type | Phillips (H) or Pozi (Z) cross-recessed |
| Thread Tolerance | 6g per ISO metric standards |
| Finish | Plain/Passivated (stainless steel) |
Dimension #
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.98-3.00 | 0.50 | 10 | 10 |
| M4 | 3.98-4.00 | 0.70 | 12 | 12 |
| M5 | 4.98-5.00 | 0.80 | 16 | 16 |
| M6 | 5.97-6.00 | 1.00 | 20 | 20 |
| M8 | 7.97-8.00 | 1.25 | 25 | 25 |
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits #
Stainless steel pan head machine screws at 4mm provide corrosion-resistant metal-to-metal fastening with a wide bearing surface. The flat underside of the pan head distributes clamping force evenly, reducing localized stress on softer materials. A2 (304) stainless steel eliminates coating degradation in humid and atmospheric environments. Cross-recessed Phillips and Pozi drives reduce cam-out during powered installation. This diameter serves small electronics, instrument panels, and light machinery assembly.
Common Applications #
Common applications for M4 stainless steel pan head machine screws include:
- Consumer electronics assembly
- Small instrument panel mounting
- Medical device housings
- Laboratory equipment frames
- Small electrical enclosure assembly
The product images are for illustration purposes only. Actual products may vary by part number, size, model, color, etc. Customers unfamiliar with the products are encouraged to contact our support team for exact images, if available. This product comes with a warranty against manufacturing defects; refer to the warranty policy for claim instructions. id/1225, /product/ss-pan-head-machine-screw-m4x40mm.md, /catalog/m4-ss-pan-head-machine-screw.md,
