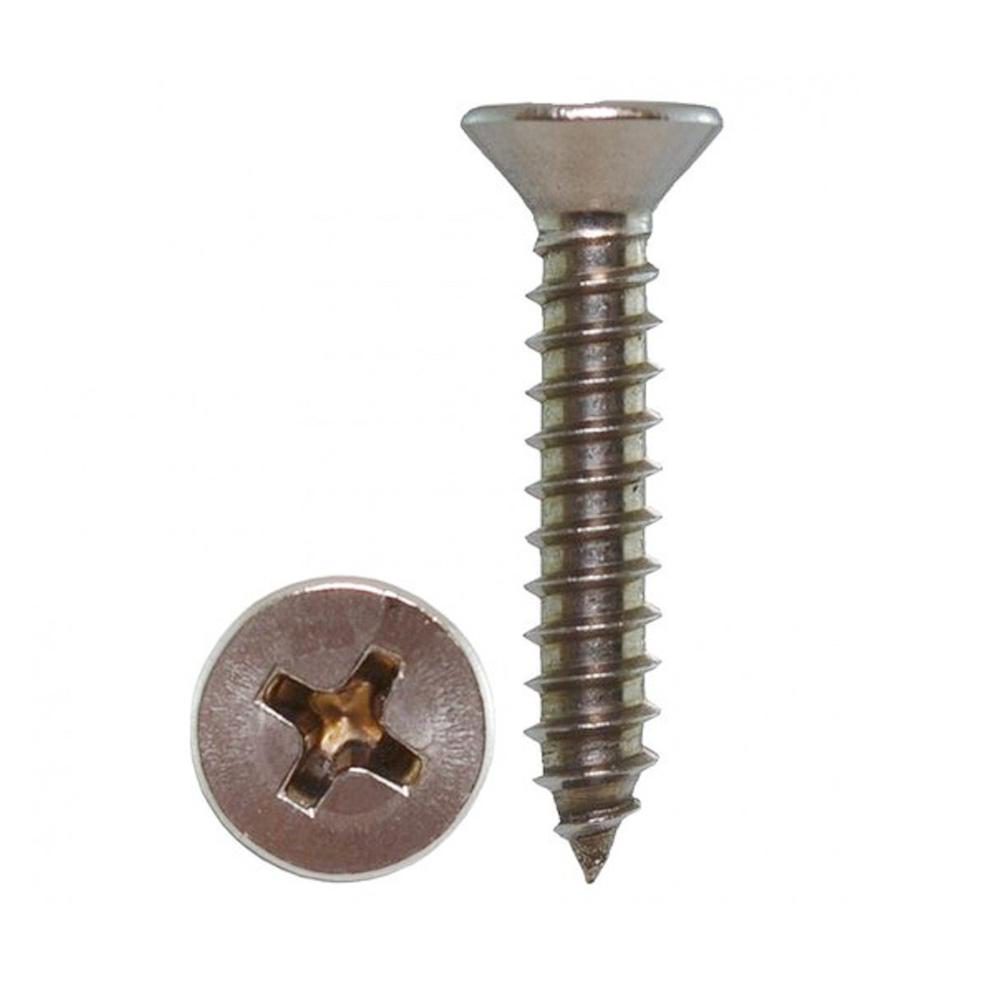

#4 x 6.5mm SS Self Tapping Screw CSK Head
₹23.73 (excl. GST)
- SKU:
- FSS-TAPSCREW-CSK-#4-6.5
- Brand:
- Fastdep
- Category:
- #4 SS Self Tapping Screw CSK Head
- Qty / Pack:
- 1 per pack
Maintenance Notice: We are performing maintenance at the moment. You will not be able to place orders. You can always contact us
Bulk Purchase (MOQ: 500+)
Contact us for price, lead time, stock confirmation.
Product Details #
ST2.9 (#4) stainless steel countersunk self-tapping screws per ISO 7050 in A2 grade. 80° flat head forms its own thread in pre-drilled holes for flush, corrosion-resistant assembly at ST2.9 gauge.
Specification #
| Standard | ISO 7050 (supersedes DIN 7982); equivalent to DIN EN ISO 7050 |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Surface Finish | Plain/passivated (standard for stainless steel) |
| Head Type | Countersunk (flat head), 80-degree included angle |
| Drive Type | Phillips (H), Pozidriv (Z), Hexalobular/Torx (IRS) |
| Point Form | Form C (cone/gimlet point) or Form F (flat/blunt end) |
Dimension #
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| ST2.9 | 2.9-2.9 | 1.1 | 13 | 13 |
| ST3.5 | 3.5-3.5 | 1.3 | 16 | 16 |
| ST4.2 | 4.2-4.2 | 1.4 | 19 | 19 |
| ST4.8 | 4.8-4.8 | 1.6 | 22 | 22 |
| ST5.5 | 5.5-5.5 | 1.8 | 25 | 25 |
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits #
Stainless steel countersunk self-tapping screws at ST2.9 (#4) gauge eliminate separate tapping operations while providing flush mounting in corrosive environments. The 80° flat head seats level with the material surface, preventing snagging. A2 (304) stainless steel eliminates coating degradation in humid and atmospheric environments. Self-tapping thread cuts into sheet metal, plastics, and composites without pre-tapping. This gauge serves thin-gauge enclosure assembly, HVAC ductwork, and electrical panel fabrication.
Common Applications #
Common applications for ST2.9 (#4) stainless steel countersunk self-tapping screws include:
- Thin-gauge enclosure assembly
- Small electrical box fabrication
- Light-duty HVAC ductwork
- Appliance housing assembly
- Small signage mounting
