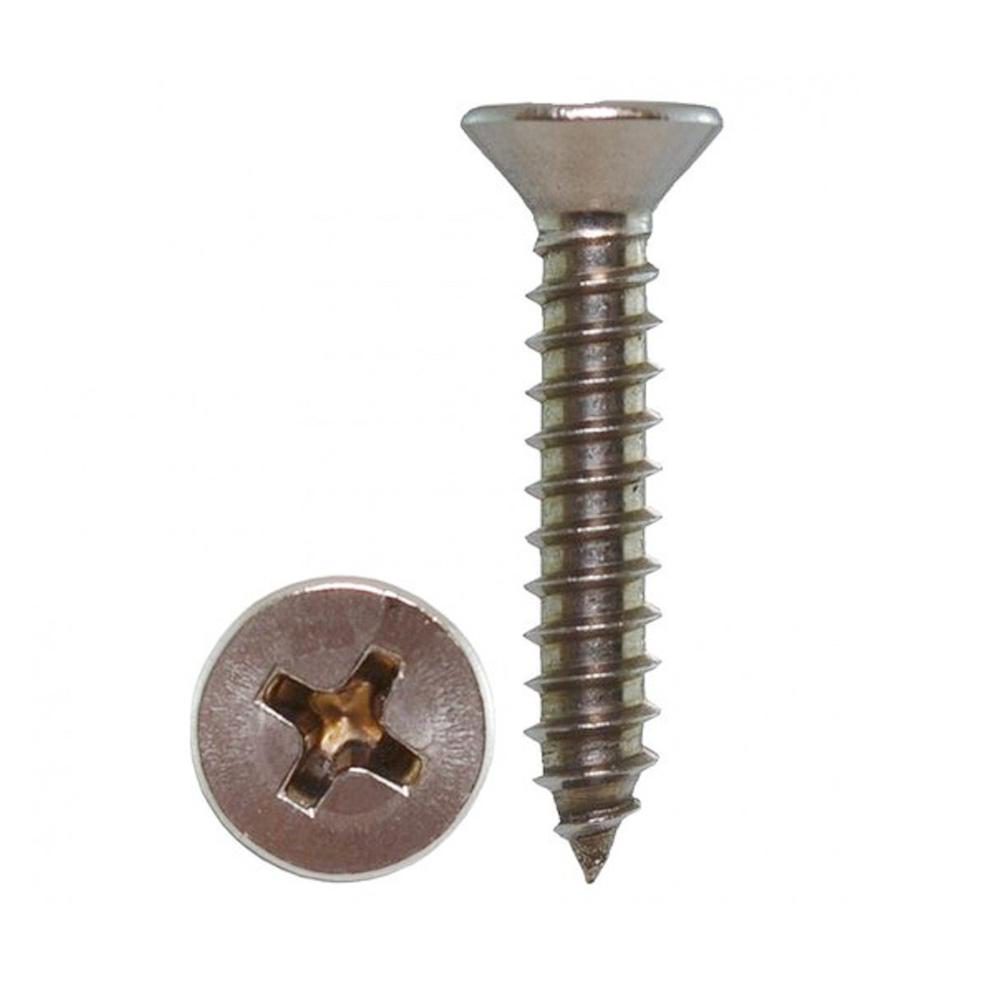

#8 x 9.5mm SS Self Tapping Screw CSK Head
₹23.73 (excl. GST)
- SKU:
- FSS-TAPSCREW-CSK-#8-9.5
- Brand:
- Fastdep
- Category:
- #8 SS Self Tapping Screw CSK Head
- Qty / Pack:
- 1 per pack
Maintenance Notice: We are performing maintenance at the moment. You will not be able to place orders. You can always contact us
Bulk Purchase (MOQ: 500+)
Contact us for price, lead time, stock confirmation.
Product Details #
ST4.2 (#8) stainless steel self-tapping countersunk screws to ISO 7050 with 80° flush head in A2 grade. Thread-forming fasteners for sheet metal and plastic assembly at ST4.2 gauge.
Specification #
| Standard | ISO 7050 (supersedes DIN 7982); equivalent to DIN EN ISO 7050 |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Surface Finish | Plain/passivated (standard for stainless steel) |
| Head Type | Countersunk (flat head), 80-degree included angle |
| Drive Type | Phillips (H), Pozidriv (Z), Hexalobular/Torx (IRS) |
| Point Form | Form C (cone/gimlet point) or Form F (flat/blunt end) |
Dimension #
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| ST2.9 | 2.9-2.9 | 1.1 | 13 | 13 |
| ST3.5 | 3.5-3.5 | 1.3 | 16 | 16 |
| ST4.2 | 4.2-4.2 | 1.4 | 19 | 19 |
| ST4.8 | 4.8-4.8 | 1.6 | 22 | 22 |
| ST5.5 | 5.5-5.5 | 1.8 | 25 | 25 |
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits #
At ST4.2 (#8) gauge, stainless steel countersunk self-tapping screws provide flush, corrosion-resistant fastening in thin-gauge fabrication. The 80° head angle matches standard countersink preparation. A2 stainless steel construction is appropriate for outdoor enclosures, marine fittings, and food processing equipment. Self-tapping thread reduces assembly time by eliminating pre-tapping operations.
Common Applications #
Typical applications for ST4.2 (#8) gauge stainless steel countersunk self-tapping screws:
- Architectural cladding panels
- Solar panel mounting frames
- Industrial enclosure fabrication
- Food processing equipment covers
- Heavy-gauge sheet metal assembly
