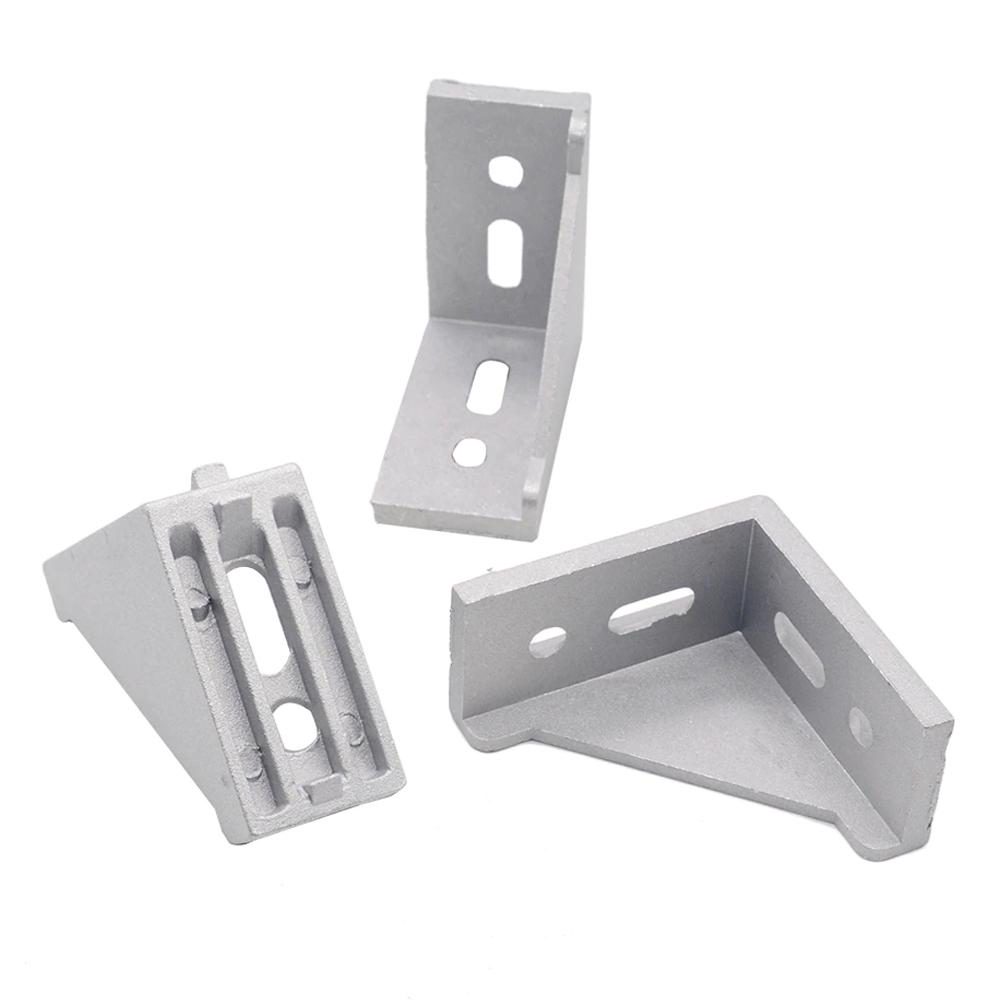

4590 Inside L Corner Bracket for 9090 TSlot
₹23.73 (excl. GST)
- SKU:
- ALEX-BRKT-IN-4590
- Brand:
- Fastdep
- Category:
- Inside L Corner Bracket
- Qty / Pack:
- 1 per pack
Maintenance Notice: We are performing maintenance at the moment. You will not be able to place orders. You can always contact us
Bulk Purchase (MOQ: 100+)
Contact us for price, lead time, stock confirmation.
Product Details #
L-shaped connectors that fit inside T-slot grooves of two perpendicular aluminium extrusion profiles to create concealed 90-degree joints. Made from zinc alloy or aluminium alloy for clean structural connections with no visible exterior hardware.
Specification #
| Material | Zinc alloy (die-cast) or aluminium alloy |
| Angle | 90 degrees |
| Connection Type | Internal/concealed, set screw fastening |
| Matching Slot | Profile series-specific (20, 30, 40, 45 series) |
| Installation | Slide into T-slot grooves, tighten set screws with matching wrench |
Dimension #
| Bracket Size | Profile Series | Width (mm) | Length (mm) | Height (mm) | Hole Diameter (mm) |
|---|---|---|---|---|---|
| 3060 Inside Corner Bracket |
3030, 6060 | 30 mm | 55 mm | 55 mm | 8 mm |
| 4080 Inside Corner Bracket |
4040, 8080 | 40 mm | 80 mm | 80 mm | 8 mm |
| 4590 Inside Corner Bracket |
4545, 9090 | 45 mm | 80 mm | 80 mm | 8 mm |
- Dimensions vary by profile series. Representative sizes below.
Benefits #
Inside L corner brackets solve the problem of visible fasteners at 90-degree joints in aluminium extrusion frames. By sliding both arms into the T-slot grooves of perpendicular profiles and tightening set screws, the bracket remains entirely concealed within the profile cross-section. This produces a clean exterior with no protruding hardware, which is important for enclosures, machine guards, and aesthetic-sensitive assemblies. Installation requires no machining or drilling of the profiles. The concealed connection preserves all external T-slot faces for mounting panels, sensors, or accessories without bracket interference. While limited in torsional strength compared to external brackets, inside corner brackets are sufficient for light-duty frames, 3D printer structures, and prototype assemblies where appearance and slot accessibility take priority over maximum joint rigidity.
Common Applications #
Inside L corner brackets are used in T-slot aluminium framing where a concealed 90-degree joint is preferred over visible external hardware.
- 3D printer frames
- CNC router frames
- Laser engraver structures
- Robotics projects
- Industrial aluminium frame structures
- Machine enclosures
- Light-duty modular assemblies
