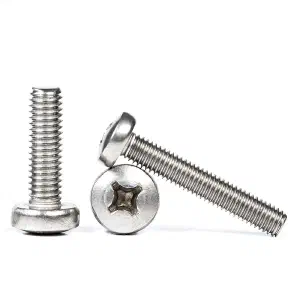

3/8 SS Pan Head Machine Screw (INCH)

3/8 SS Pan Head Machine Screw (INCH)

3/8" stainless steel cylindrical head machine screws to ASME B18.6.3 with Phillips drive in A2-70 grade. Inch-specification fastening at 3/8-inch diameter.

Specification #

Standard ANSI/ASME B18.6.3
Thread Coarse (standard)
Material Stainless Steel 304 (A2)
Grade A2-70
Stock In stock (304). Grade 316 available against bulk order
Head Type Pan head
Drive Type Phillips cross-recessed
Thread Class Class 2A per ASME B1.1
Finish Plain/Passivated (stainless steel)

Dimension #

Dimension of SS Pan Head Machine Screw (inch)

Size (inch) Thread Dia (min-max inch) Pitch (TPI) Length (inch) Thread Length (inch)
#6 0.138-0.138 32 0.50 0.50
#8 0.164-0.164 32 0.625 0.625
#10 0.190-0.190 24 0.75 0.75
1/4" 0.250-0.250 20 1.00 1.00
5/16" 0.3125-0.3125 18 1.25 1.25
  • All dimensions in inches, tolerance +/- 0.001 inch. Additional dimensions available on request.

Benefits #

At 3/8-inch, inch-series stainless steel pan head screws provide reliable threaded connections in US-specification corrosive environment assemblies. The pan head provides a wider bearing surface than round head alternatives. A2 stainless steel construction is appropriate for marine, food processing, and architectural applications where inch-dimensioned fasteners are specified.

Common Applications #

Typical applications for 3/8-inch inch-series SS pan head machine screws:

  • Industrial equipment (inch spec)
  • Heavy machinery panel attachment
  • Marine deck hardware (inch)
  • Architectural metalwork (inch)
  • Large appliance assembly (inch)
