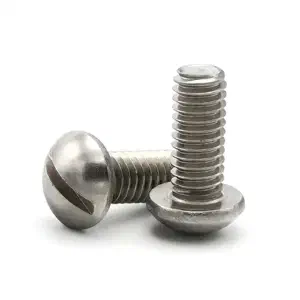

1/8 SS Round Head Machine Screw (INCH)
#1/8 stainless steel round head machine screws per ASME B18.6.3 in A2-70 grade. Narrow cheese head with slotted drive for inch-specification space-constrained assemblies at #1/8 (inch) diameter.
Specification
#
Standard
ANSI/ASME B18.6.3
Thread
Coarse (standard)
Material
Stainless Steel 304 (A2)
Grade
A2-70
Stock
In stock (304). Grade 316 available against bulk order
Head Type
Round head
Drive Type
Slotted
Thread Class
Class 2A per ASME B1.1
Finish
Plain/Passivated (stainless steel)
Dimension
#
Size (inch)
Thread Dia (min-max inch)
Pitch (TPI)
Length (inch)
Thread Length (inch)
#6
0.138-0.138
32
0.50
0.50
#8
0.164-0.164
32
0.625
0.625
#10
0.190-0.190
24
0.75
0.75
1/4"
0.250-0.250
20
1.00
1.00
5/16"
0.3125-0.3125
18
1.25
1.25
- All dimensions in inches, tolerance +/- 0.001 inch. Additional dimensions available on request.
Benefits
#
Inch-series stainless steel round head machine screws at #1/8 (inch) provide corrosion-resistant fastening in US-specification space-constrained assemblies. The narrow cheese head allows tighter fastener spacing than pan head alternatives. A2 (304) stainless steel eliminates coating degradation. Slotted drive requires only a flat-blade screwdriver. This diameter serves legacy US-specification electrical panels, instrumentation, and light-duty assemblies.
Common Applications
#
Common applications for #1/8 inch-series SS round head machine screws include:
- US-spec electrical terminal blocks
- Legacy instrument panel wiring
- Small US-spec switchgear
- Marine electrical connections (inch)
- Aerospace wiring (inch spec)
