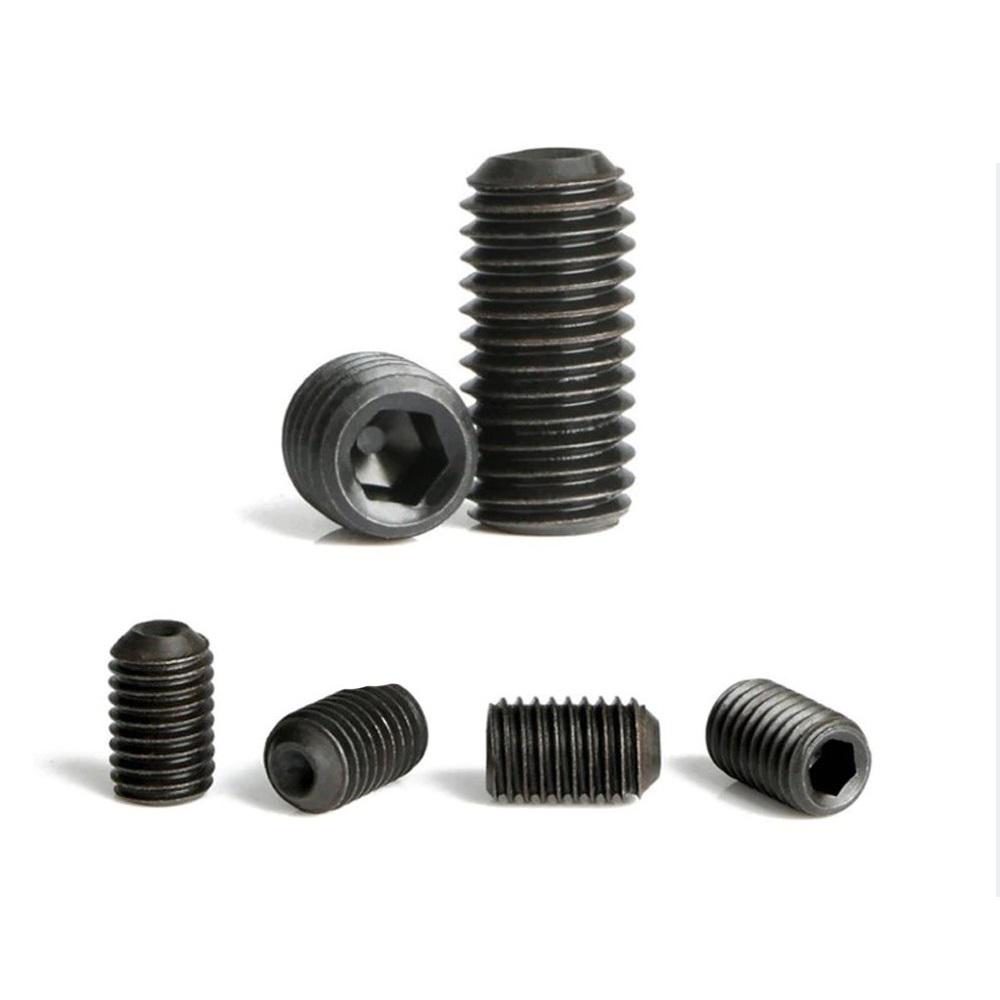

1/4 x 3/4 Allen Grub Screw (Inch) (High Tensile) - 10 Nos
₹23.73 (excl. GST)
- SKU:
- FHT-SCREWSOC-GRBIN1/4X3/4
- Brand:
- Fastdep
- Category:
- 1/4 Allen Grub Screw (Inch)
- Qty / Pack:
- 10 per pack
- 🟢 In Stock:
- 99 Packs
Maintenance Notice: We are performing maintenance at the moment. You will not be able to place orders. You can always contact us
Order Today, Estimated delivery between:
Dispatch in 24–48 hrs
Shipping Options:
📦 India Post
🚚 Delhivery
📮 DTDC
More
Bulk Purchase (MOQ: 100+)
Contact us for price, lead time, stock confirmation.
Product Details #
1/4" inch-series headless set screws with cup point per ASME B18.3 and internal hex drive in alloy steel Rc 45-53. UNC threads for shaft locking in US-specification equipment at 1/4-inch diameter.
Specification #
| Standard | ASME B18.3 |
| Material | Alloy Steel |
| Thread | UNC (Coarse) |
| Grade | 12.9 |
| Coating | Black oxide |
| Head Type | Headless (no head) |
| Drive Type | Hexagon socket (Allen key/hex wrench) |
| Point Type | Cup point (concave depression) |
Dimension #
| Size | Thread Dia (d) | Pitch (TPI) | Length(L) | Thread Length (b) |
|---|---|---|---|---|
| 3/16 | 0.1887-0.1900 | 24 | 3/16" - 1" | Full |
| 1/4 | 0.2489-0.2500 | 20 | 1/4" - 1 | Full |
| 5/16 | 0.3113-0.3125 | 18 | 5/16" - 1 1/2" | Full |
| 3/8 | 0.3737-0.3750 | 16 | 3/8" - 1 1/2" | Full |
| 1/2 | 0.4985-0.5000 | 13 | 1/2" - 1 1/2" | Full |
| 5/8 | 0.6232-0.6250 | 11 | 5/8" - 1 1/2" | Full |
- All dimensions in inches, tolerance +/- 0.001 in. Additional dimensions available on request.
Benefits #
Inch-series grub screws at 1/4-inch address shaft-locking requirements in US-specification machinery and legacy equipment. The cup point produces a controlled indentation on the shaft surface, providing a mechanical lock against rotational slip and axial movement. The headless design installs entirely within the threaded bore, eliminating protrusions in tight assemblies. Alloy steel hardness Rc 45-53 ensures effective indentation across common shaft materials. ASME B18.3 provides documented seating torque values for predictable installation.
Common Applications #
Common applications for 1/4" inch-series grub screws include:
- Small instrument shaft locking (imperial)
- Electrical terminal connections
- Light-duty US-spec coupling assembly
- Precision instrument adjustment locking
- Small knob and handle attachment
