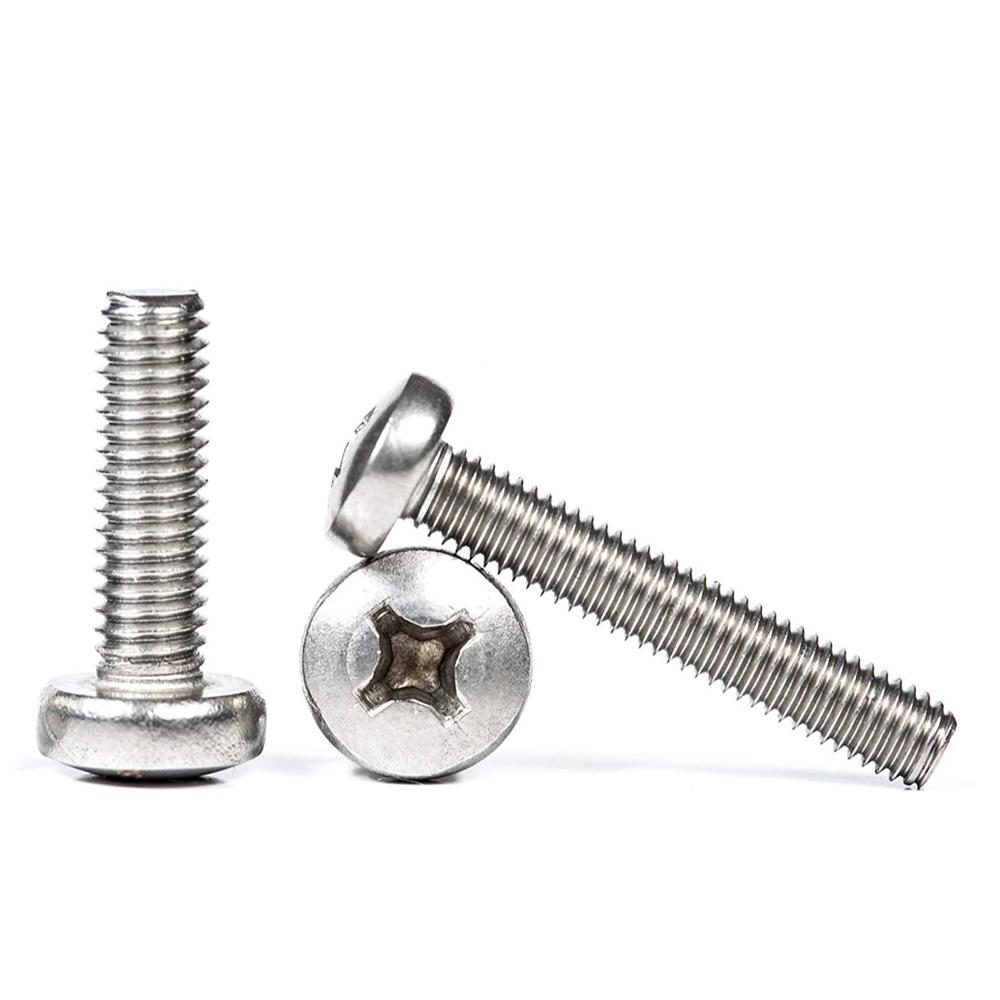

3/16 x 2 SS Pan Head Machine Screw (INCH)
₹23.73 (excl. GST)
- SKU:
- FSS-MACSCREW-PAN-INCH-3/16X2
- Brand:
- Fastdep
- Category:
- 3/16 SS Pan Head Machine Screw (INCH)
- Qty / Pack:
- 1 per pack
Maintenance Notice: We are performing maintenance at the moment. You will not be able to place orders. You can always contact us
Bulk Purchase (MOQ: 500+)
Contact us for price, lead time, stock confirmation.
Product Details #
ASME B18.6.3 3/16" stainless steel pan head screws in A2 (304) grade with cross-recessed drive. Inch-dimensioned for US-specification equipment at 3/16-inch diameter.
Specification #
| Standard | ANSI/ASME B18.6.3 |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Head Type | Pan head |
| Drive Type | Phillips cross-recessed |
| Thread Class | Class 2A per ASME B1.1 |
| Finish | Plain/Passivated (stainless steel) |
Dimension #
| Size (inch) | Thread Dia (min-max inch) | Pitch (TPI) | Length (inch) | Thread Length (inch) |
|---|---|---|---|---|
| #6 | 0.138-0.138 | 32 | 0.50 | 0.50 |
| #8 | 0.164-0.164 | 32 | 0.625 | 0.625 |
| #10 | 0.190-0.190 | 24 | 0.75 | 0.75 |
| 1/4" | 0.250-0.250 | 20 | 1.00 | 1.00 |
| 5/16" | 0.3125-0.3125 | 18 | 1.25 | 1.25 |
- All dimensions in inches, tolerance +/- 0.001 inch. Additional dimensions available on request.
Benefits #
The 3/16-inch stainless steel pan head machine screw addresses fastening in imperial-dimensioned assemblies where metric fasteners are not interchangeable. A2-70 grade provides 700 MPa tensile strength with inherent corrosion protection. The cylindrical head profile allows installation where countersinking is impractical. Phillips drive compatibility ensures installation with standard hand and powered drivers.
Common Applications #
3/16" SS pan head machine screws (inch) are specified for US-spec corrosion-resistant fastening:
- US-spec machinery assembly
- Marine equipment mounting (inch)
- Automotive components (inch)
- Food processing equipment (inch)
- HVAC system connections (inch)
The product images are for illustration purposes only. Actual products may vary by part number, size, model, color, etc. Customers unfamiliar with the products are encouraged to contact our support team for exact images, if available. This product comes with a warranty against manufacturing defects; refer to the warranty policy for claim instructions. id/1299, /product/ss-pan-head-machine-screw-inch-3-16x2.md, /catalog/3-16-ss-pan-head-machine-screw-inch.md,
