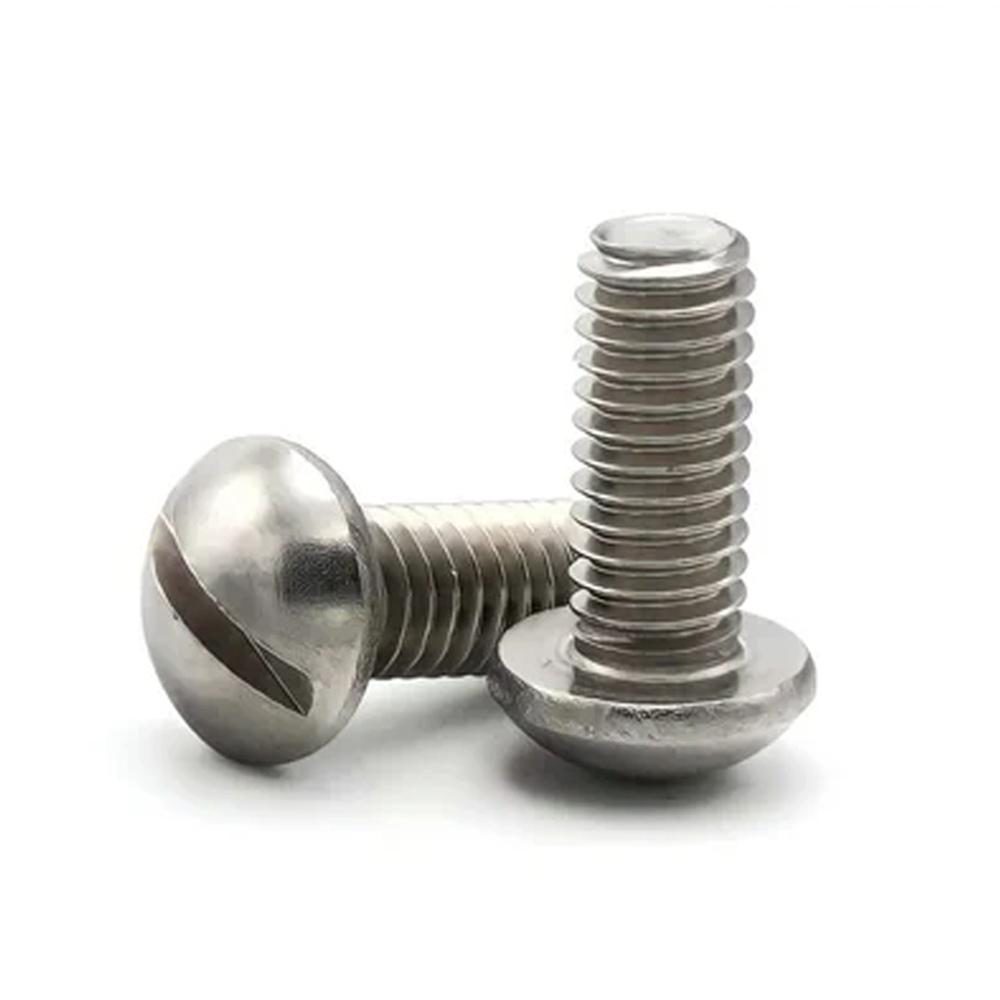

M2 x 10mm SS Round Head Machine Screw
₹23.73 (excl. GST)
- SKU:
- FSS-MACSCREW-ROUND-M2X10
- Brand:
- Fastdep
- Category:
- M2 SS Round Head Machine Screw
- Qty / Pack:
- 1 per pack
Maintenance Notice: We are performing maintenance at the moment. You will not be able to place orders. You can always contact us
Bulk Purchase (MOQ: 500+)
Contact us for price, lead time, stock confirmation.
Product Details #
M2 stainless steel round head machine screws per ISO 1207 / DIN 84 in A2-70 grade. Narrow cheese head with slotted drive for tight spaces and low-torque applications at 2mm diameter.
Specification #
| Standard | ISO 1207 / DIN 84 |
| Thread | Coarse (standard) |
| Material | Stainless Steel 304 (A2) |
| Grade | A2-70 |
| Stock | In stock (304). Grade 316 available against bulk order |
| Head Type | Round head (cheese head) |
| Drive Type | Slotted |
| Thread Tolerance | 6g per ISO metric standards |
| Finish | Plain/Passivated (stainless steel) |
Dimension #
| Size (d mm) | Thread Dia (min-max mm) | Pitch | Length (mm) | Thread Length (mm) |
|---|---|---|---|---|
| M3 | 2.98-3.00 | 0.50 | 10 | 10 |
| M4 | 3.98-4.00 | 0.70 | 12 | 12 |
| M5 | 4.98-5.00 | 0.80 | 16 | 16 |
| M6 | 5.97-6.00 | 1.00 | 20 | 20 |
| M8 | 7.97-8.00 | 1.25 | 25 | 25 |
- All dimensions in mm, tolerance +/- 0.01 mm. Additional dimensions available on request.
Benefits #
Stainless steel round head machine screws at 2mm provide corrosion-resistant fastening in space-constrained assemblies. The narrow cheese head occupies less lateral space than pan or hex heads, allowing tighter fastener spacing in dense terminal blocks and switchgear. A2 (304) stainless steel eliminates coating degradation in humid environments. Slotted drive requires only a flat-blade screwdriver, simplifying field maintenance. This diameter serves electrical panels, instrumentation, and light-duty assemblies.
Common Applications #
Common applications for M2 stainless steel round head machine screws include:
- Electrical terminal blocks
- Small switchgear mounting
- Instrument panel wiring connections
- Light fixture assembly
- Small appliance internal wiring
